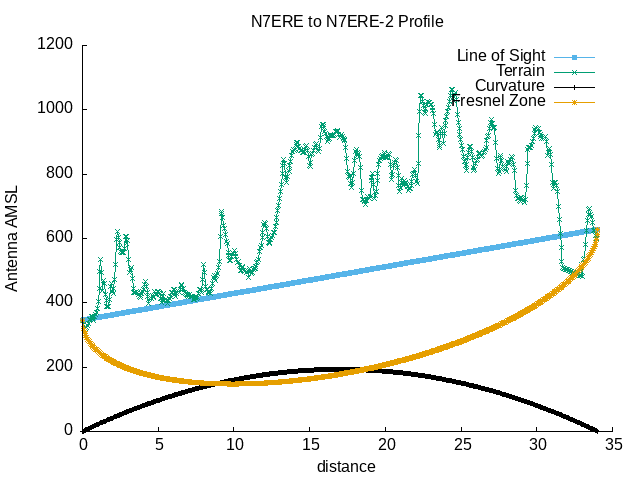

| --==[ Path Profile Analysis ]==-- |
| Transmitter site: Tx |
| Site location: 35.0885, -92.3210 |
| Ground elevation: 331.36 feet AMSL |
| Antenna height: 15.00 feet AGL / 346.36 feet AMSL |
| Distance to Rx: 34.04 miles |
| Azimuth to Rx: 2.08 degrees grid |
| Downtilt angle to Rx: -0.1564 degrees |
| Receiver site: Rx |
| Site location: 35.5808, -92.2990 |
| Ground elevation: 613.52 feet AMSL |
| Antenna height: 15.00 feet AGL / 628.52 feet AMSL |
| Distance to Tx: 34.04 miles |
| Azimuth to Tx: 182.09 degrees grid |
| Downtilt angle to Tx: -0.3363 degrees |
| Propagation model: Line of sight |
| Model sub-type: Rural / Optimistic |
| Earth's Dielectric Constant: 15.000 |
| Earth's Conductivity: 0.005 Siemens/meter |
| Atmospheric Bending Constant (N-units): 301.000 ppm |
| Frequency: 462.725 MHz |
| Radio Climate: 5 (Continental Temperate) |
| Polarisation: 1 (Vertical) |
| Fraction of Situations: 50.0% |
| Fraction of Time: 50.0% |
| Summary for the link between Tx and Rx: |
| Free space path loss: 120.55 dB |
| Computed path loss: 187.11 dB |
| Attenuation due to terrain shielding: 66.57 dB |
| Between Rx and Tx, obstructions were detected at: |
| 35.5756 N, 92.2992 W, 0.37 miles, 643.04 feet AMSL |
| 35.5747 N, 92.2993 W, 0.42 miles, 659.45 feet AMSL |
| 35.5739 N, 92.2993 W, 0.48 miles, 662.73 feet AMSL |
| 35.5731 N, 92.2993 W, 0.54 miles, 682.41 feet AMSL |
| 35.5431 N, 92.3007 W, 2.61 miles, 646.33 feet AMSL |
| 35.5423 N, 92.3007 W, 2.67 miles, 688.98 feet AMSL |
| 35.5414 N, 92.3008 W, 2.73 miles, 708.66 feet AMSL |
| 35.5406 N, 92.3008 W, 2.78 miles, 715.22 feet AMSL |
| 35.5398 N, 92.3008 W, 2.84 miles, 715.22 feet AMSL |
| 35.5373 N, 92.3010 W, 3.01 miles, 711.94 feet AMSL |
| 35.5364 N, 92.3010 W, 3.07 miles, 767.72 feet AMSL |
| 35.5356 N, 92.3010 W, 3.13 miles, 797.24 feet AMSL |
| 35.5348 N, 92.3011 W, 3.19 miles, 813.65 feet AMSL |
| 35.5314 N, 92.3012 W, 3.42 miles, 833.33 feet AMSL |
| 35.5306 N, 92.3013 W, 3.47 miles, 846.46 feet AMSL |
| 35.5264 N, 92.3014 W, 3.76 miles, 839.90 feet AMSL |
| 35.5256 N, 92.3015 W, 3.82 miles, 846.46 feet AMSL |
| 35.5248 N, 92.3015 W, 3.88 miles, 853.02 feet AMSL |
| 35.5239 N, 92.3016 W, 3.93 miles, 862.86 feet AMSL |
| 35.5223 N, 92.3016 W, 4.05 miles, 859.58 feet AMSL |
| 35.5215 N, 92.3017 W, 4.11 miles, 862.86 feet AMSL |
| 35.4832 N, 92.3034 W, 6.75 miles, 774.28 feet AMSL |
| 35.4823 N, 92.3034 W, 6.81 miles, 820.21 feet AMSL |
| 35.4807 N, 92.3035 W, 6.93 miles, 820.21 feet AMSL |
| 35.4798 N, 92.3035 W, 6.99 miles, 830.05 feet AMSL |
| 35.4790 N, 92.3036 W, 7.04 miles, 843.18 feet AMSL |
| 35.4482 N, 92.3050 W, 9.17 miles, 790.68 feet AMSL |
| 35.4474 N, 92.3050 W, 9.23 miles, 807.09 feet AMSL |
| 35.4465 N, 92.3050 W, 9.29 miles, 833.33 feet AMSL |
| 35.4457 N, 92.3051 W, 9.35 miles, 879.27 feet AMSL |
| 35.4449 N, 92.3051 W, 9.40 miles, 898.95 feet AMSL |
| 35.4415 N, 92.3053 W, 9.63 miles, 905.51 feet AMSL |
| 35.4407 N, 92.3053 W, 9.69 miles, 905.51 feet AMSL |
| 35.4199 N, 92.3062 W, 11.13 miles, 853.02 feet AMSL |
| 35.4191 N, 92.3063 W, 11.19 miles, 853.02 feet AMSL |
| 35.4182 N, 92.3063 W, 11.24 miles, 856.30 feet AMSL |
| 35.4132 N, 92.3065 W, 11.59 miles, 853.02 feet AMSL |
| 35.4124 N, 92.3066 W, 11.65 miles, 869.42 feet AMSL |
| 35.4116 N, 92.3066 W, 11.71 miles, 869.42 feet AMSL |
| 35.3391 N, 92.3098 W, 16.71 miles, 715.22 feet AMSL |
| 35.3375 N, 92.3099 W, 16.83 miles, 718.50 feet AMSL |
| 35.3366 N, 92.3099 W, 16.89 miles, 725.07 feet AMSL |
| 35.3358 N, 92.3100 W, 16.94 miles, 731.63 feet AMSL |
| 35.3333 N, 92.3101 W, 17.12 miles, 731.63 feet AMSL |
| 35.3325 N, 92.3101 W, 17.17 miles, 741.47 feet AMSL |
| 35.3308 N, 92.3102 W, 17.29 miles, 738.19 feet AMSL |
| 35.3300 N, 92.3102 W, 17.35 miles, 738.19 feet AMSL |
| 35.3258 N, 92.3104 W, 17.63 miles, 731.63 feet AMSL |
| 35.3217 N, 92.3106 W, 17.92 miles, 725.07 feet AMSL |
| 35.3208 N, 92.3107 W, 17.98 miles, 734.91 feet AMSL |
| 35.3200 N, 92.3107 W, 18.04 miles, 741.47 feet AMSL |
| 35.3192 N, 92.3107 W, 18.09 miles, 754.59 feet AMSL |
| 35.3183 N, 92.3108 W, 18.15 miles, 761.15 feet AMSL |
| 35.3175 N, 92.3108 W, 18.21 miles, 761.15 feet AMSL |
| 35.2942 N, 92.3118 W, 19.82 miles, 711.94 feet AMSL |
| 35.2933 N, 92.3119 W, 19.88 miles, 711.94 feet AMSL |
| 35.1352 N, 92.3189 W, 30.82 miles, 442.91 feet AMSL |
| 35.1327 N, 92.3190 W, 30.99 miles, 472.44 feet AMSL |
| 35.1318 N, 92.3191 W, 31.05 miles, 531.50 feet AMSL |
| 35.1302 N, 92.3192 W, 31.16 miles, 547.90 feet AMSL |
| 35.1293 N, 92.3192 W, 31.22 miles, 547.90 feet AMSL |
| 35.1235 N, 92.3194 W, 31.62 miles, 538.06 feet AMSL |
| 35.1227 N, 92.3195 W, 31.68 miles, 554.46 feet AMSL |
| 35.1219 N, 92.3195 W, 31.74 miles, 574.15 feet AMSL |
| 35.1060 N, 92.3202 W, 32.83 miles, 508.53 feet AMSL |
| Antenna at Rx must be raised to at least 5044.00 feet AGL |
| to clear all obstructions detected. |
| Antenna at Rx must be raised to at least 8266.00 feet AGL |
| to clear the first Fresnel zone. |
| Antenna at Rx must be raised to at least 6977.00 feet AGL |
| to clear 600f the first Fresnel zone. |
