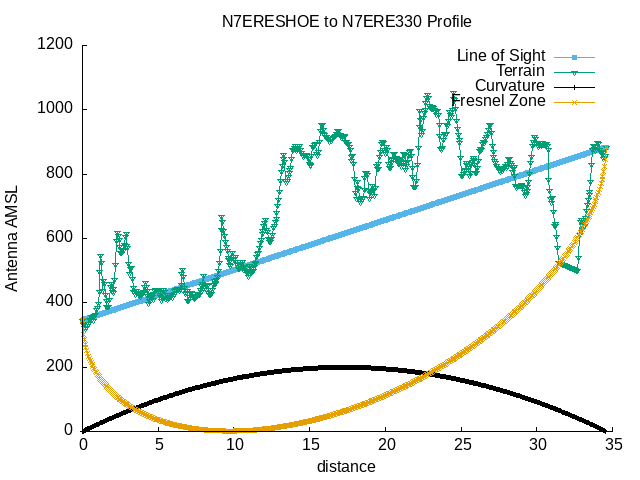

| --==[ Path Profile Analysis ]==-- |
| Transmitter site: Tx |
| Site location: 35.0885, -92.3210 |
| Ground elevation: 331.36 feet AMSL |
| Antenna height: 15.00 feet AGL / 346.36 feet AMSL |
| Distance to Rx: 34.59 miles |
| Azimuth to Rx: 1.44 degrees grid |
| Downtilt angle to Rx: -0.0815 degrees |
| Receiver site: Rx |
| Site location: 35.5889, -92.3055 |
| Ground elevation: 869.42 feet AMSL |
| Antenna height: 15.00 feet AGL / 884.42 feet AMSL |
| Distance to Tx: 34.59 miles |
| Azimuth to Tx: 181.45 degrees grid |
| Downtilt angle to Tx: -0.4191 degrees |
| Propagation model: Line of sight |
| Model sub-type: Rural / Optimistic |
| Earth's Dielectric Constant: 15.000 |
| Earth's Conductivity: 0.005 Siemens/meter |
| Atmospheric Bending Constant (N-units): 301.000 ppm |
| Frequency: 147.525 MHz |
| Radio Climate: 5 (Continental Temperate) |
| Polarisation: 1 (Vertical) |
| Fraction of Situations: 50.0% |
| Fraction of Time: 50.0% |
| Summary for the link between Tx and Rx: |
| Free space path loss: 110.76 dB |
| Computed path loss: 165.29 dB |
| Attenuation due to terrain shielding: 54.53 dB |
| Between Rx and Tx, obstructions were detected at: |
| 35.5816 N, 92.3057 W, 0.50 miles, 882.55 feet AMSL |
| 35.5808 N, 92.3058 W, 0.56 miles, 885.83 feet AMSL |
| 35.5333 N, 92.3072 W, 3.84 miles, 797.24 feet AMSL |
| 35.5325 N, 92.3073 W, 3.90 miles, 810.37 feet AMSL |
| 35.5316 N, 92.3073 W, 3.96 miles, 813.65 feet AMSL |
| 35.5300 N, 92.3073 W, 4.07 miles, 810.37 feet AMSL |
| 35.5283 N, 92.3074 W, 4.19 miles, 813.65 feet AMSL |
| 35.5233 N, 92.3075 W, 4.53 miles, 807.09 feet AMSL |
| 35.5216 N, 92.3076 W, 4.65 miles, 816.93 feet AMSL |
| 35.5208 N, 92.3076 W, 4.71 miles, 823.49 feet AMSL |
| 35.4808 N, 92.3089 W, 7.47 miles, 734.91 feet AMSL |
| 35.4800 N, 92.3089 W, 7.53 miles, 754.59 feet AMSL |
| 35.4791 N, 92.3089 W, 7.59 miles, 793.96 feet AMSL |
| 35.4783 N, 92.3089 W, 7.64 miles, 816.93 feet AMSL |
| 35.4775 N, 92.3090 W, 7.70 miles, 816.93 feet AMSL |
| 35.4475 N, 92.3099 W, 9.77 miles, 761.15 feet AMSL |
| 35.4467 N, 92.3099 W, 9.83 miles, 780.84 feet AMSL |
| 35.4458 N, 92.3100 W, 9.89 miles, 803.81 feet AMSL |
| 35.4450 N, 92.3100 W, 9.95 miles, 839.90 feet AMSL |
| 35.4442 N, 92.3100 W, 10.00 miles, 869.42 feet AMSL |
| 35.4433 N, 92.3100 W, 10.06 miles, 889.11 feet AMSL |
| 35.4200 N, 92.3108 W, 11.67 miles, 836.61 feet AMSL |
| 35.4192 N, 92.3108 W, 11.73 miles, 859.58 feet AMSL |
| 35.4183 N, 92.3108 W, 11.79 miles, 869.42 feet AMSL |
| 35.3425 N, 92.3132 W, 17.03 miles, 695.54 feet AMSL |
| 35.3417 N, 92.3132 W, 17.09 miles, 695.54 feet AMSL |
| 35.3409 N, 92.3132 W, 17.14 miles, 702.10 feet AMSL |
| 35.3400 N, 92.3132 W, 17.20 miles, 702.10 feet AMSL |
| 35.3392 N, 92.3133 W, 17.26 miles, 718.50 feet AMSL |
| 35.3384 N, 92.3133 W, 17.32 miles, 721.78 feet AMSL |
| 35.3375 N, 92.3133 W, 17.37 miles, 721.78 feet AMSL |
| 35.3350 N, 92.3134 W, 17.55 miles, 725.07 feet AMSL |
| 35.3342 N, 92.3134 W, 17.60 miles, 725.07 feet AMSL |
| 35.3334 N, 92.3134 W, 17.66 miles, 734.91 feet AMSL |
| 35.3325 N, 92.3135 W, 17.72 miles, 734.91 feet AMSL |
| 35.3226 N, 92.3138 W, 18.41 miles, 711.94 feet AMSL |
| 35.3217 N, 92.3138 W, 18.47 miles, 718.50 feet AMSL |
| 35.3209 N, 92.3138 W, 18.52 miles, 718.50 feet AMSL |
| 35.3201 N, 92.3139 W, 18.58 miles, 725.07 feet AMSL |
| 35.3192 N, 92.3139 W, 18.64 miles, 728.35 feet AMSL |
| 35.3184 N, 92.3139 W, 18.70 miles, 741.47 feet AMSL |
| 35.3176 N, 92.3139 W, 18.76 miles, 757.87 feet AMSL |
| 35.3167 N, 92.3140 W, 18.81 miles, 757.87 feet AMSL |
| 35.2809 N, 92.3151 W, 21.29 miles, 672.57 feet AMSL |
| 35.1360 N, 92.3195 W, 31.31 miles, 406.82 feet AMSL |
| 35.1351 N, 92.3196 W, 31.36 miles, 442.91 feet AMSL |
| 35.1326 N, 92.3196 W, 31.54 miles, 459.32 feet AMSL |
| 35.1318 N, 92.3197 W, 31.59 miles, 508.53 feet AMSL |
| 35.1310 N, 92.3197 W, 31.65 miles, 515.09 feet AMSL |
| 35.1301 N, 92.3197 W, 31.71 miles, 554.46 feet AMSL |
| 35.1235 N, 92.3199 W, 32.17 miles, 544.62 feet AMSL |
| 35.1227 N, 92.3199 W, 32.23 miles, 557.74 feet AMSL |
| 35.1218 N, 92.3200 W, 32.28 miles, 567.59 feet AMSL |
| 35.1068 N, 92.3204 W, 33.32 miles, 498.69 feet AMSL |
| 35.1060 N, 92.3205 W, 33.38 miles, 521.65 feet AMSL |
| Antenna at Rx must be raised to at least 5261.00 feet AGL |
| to clear all obstructions detected. |
| Antenna at Rx must be raised to at least 18287.00 feet AGL |
| to clear the first Fresnel zone. |
| Antenna at Rx must be raised to at least 8740.00 feet AGL |
| to clear 600f the first Fresnel zone. |
